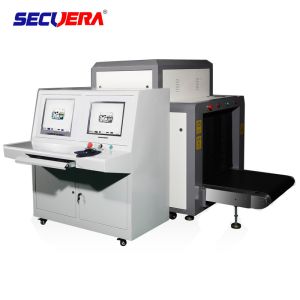

Airport Baggage And Parcel Inspection / X Ray Baggage Inspection System

Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband,SE8065 X-ray Security System is ideal for screening everything from big size packages to oddly shaped items and palletized loads.

Airport Baggage And Parcel Inspection★ Advantages:

◇ With equipment to save electricity

◇ Famous brand spare parts:

1. Spellman brand generator from the USA;
2. Hamamatsu brand detector from Japan;
3. Interroll brand Roller from German;

◇ Protective cover on lead curtain to avoid lead pollution;

◇ Sound and light alarm;

◇ Local network supported;

Airport Baggage And Parcel Inspection Applications

• Commercial buildings;
• Factories(to find needle in clothing, shoes, bags)
• Courthouses;
• Embassies;
• Government buildings;
• Military installations;
• Prisons;
• Mail Rooms
• Hotels;
• Schools;
• Convention centers;
• Security checkpoints.

Airport Baggage And Parcel Inspection General Specification

X-ray Generator

● Generate direct: Bottom to up

● Generate anger: 80 degree

● Anode Voltage…………100~160Kv

● Anode power…………0.4 to 1.2mA

● Cooling / Duty Cycle………Oil Cooling /100%

Image System

• X-ray Sensor………………L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
• Monitor……………………High Resolution Color, LCD Accord, 17 inch
• Image Processing…………Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
• Image Grey Level……………4096
• Image Max Resolution………1024 * 1280 pixel
• Image Processing……………24bit for processing real time
• Image storage……………Storage 60000 pictures in real time
• Zones & Zoom……………1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
• Multi-energetic distinguish objects …………organic objects in orange, inorganic objects in blue, mixture in green
• High-energy/low energy ………………………switch from high energy to low energy
• Assist to detect drug and explosive powder

Installation Data

• Operation temperature/Humidity…… 0℃-45℃/20%-95%(non-condensing)
• Storage Temperature/Humidity……… -20℃-60℃/20%-95%(non-condensing)
• Operation Power………………………220VAC(±10%)50±3Hz
• Power Consumption……………………1.0 KW (max)
• Noise: <58db

•
•
